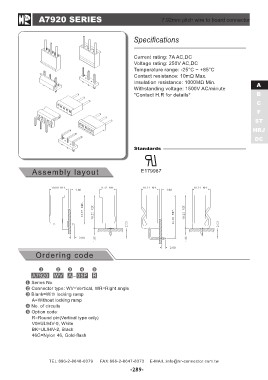

A7920 SERIES                                        7.92mm pitch wire to board connector
Assembly layout
                                             Specifications

                                             Current rating: 7A AC,DC                         A
                                             Voltage rating: 250V AC,DC                       B
                                             Temperature range: -25°C ~ +85°C                 C
                                             Contact resistance: 10mΩ Max.                    F
                                             Insulation resistance: 1000MΩ Min.              ST
                                             Withstanding voltage: 1500V AC/minute          HRJ
                                             *Contact H.R for details*                       DC

                                             Standards

                                             E179987

 Ordering code

A7920 WV A - 05P R

Series No.
Connector type: WV=Vertical, WR=Right angle
Blank=With locking ramp
A=Without locking ramp
No. of circuits
Option code:
R=Round pin(Vertical type only)
V0=UL94V-0, White
BK=UL94V-2, Black
46G=Nylon 46, Gold-flash

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

                                      -289-
