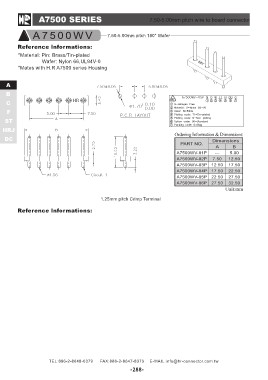

A7500 SERIES 7.50-5.00mm pitch wire to board connector

AA70580000WH IV 7.50-5.00mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A7500 series Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ
DC

A7500WV-01P --- 5.00

A7500WV-02P 7.50 12.50

A7500WV-03P 12.50 17.50

A7500WV-04P 17.50 22.50

A7500WV-05P 22.50 27.50

A7500WV-06P 27.50 32.50

Unit:mm

1.25mm pitch Crimp Terminal

Reference lnformations:
