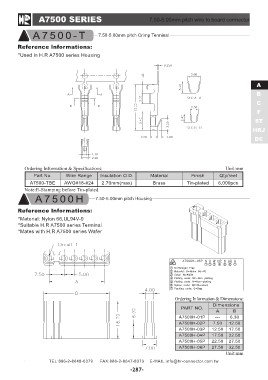

A7500 SERIES 7.50-5.00mm pitch wire to board connector
AA70580000-HTI 7.50-5.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A7500 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 6,000pcs
Tin-plated
A7500-TBE AWG#18-#24 2.70mm(max) Brass
Note:E-Stamping before Tin-plated
A7500H 7.50-5.00mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A7500 series Terminal
*Mates with H.R A7500 series Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A7500H-01P --- 6.30
A7500H-02P 7.50 12.50
A7500H-03P 12.50 17.50
A7500H-04P 17.50 22.50
A7500H-05P 22.50 27.50
A7500H-06P 27.50 32.50
Unit:mm
