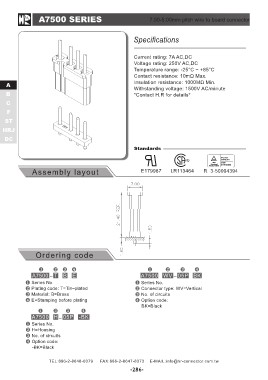

A7500 SERIES 7.50-5.00mm pitch wire to board connector

A Specifications
B
C Current rating: 7A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code

A7500 - T B E A7500 WV - 05P BK

Series No. Series No.
Plating code: T=Tin–plated Connector type: WV=Vertical
Material: B=Brass No. of circuits
E=Stamping before plating Option code:
BK=Black

A7500 H - 05P -BK

Series No.
H=Housing
No. of circuits
Option code:
-BK=Black
