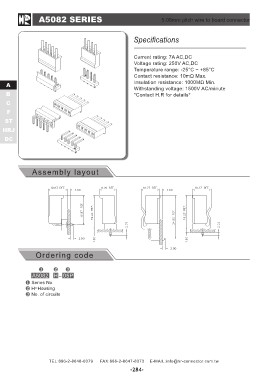

A5082 SERIES                  5.08mm pitch wire to board connector

  A                         Specifications
  B
  C                         Current rating: 7A AC,DC
  F                         Voltage rating: 250V AC,DC
 ST                         Temperature range: -25°C ~ +85°C
HRJ                         Contact resistance: 10mΩ Max.
 DC                         Insulation resistance: 1000MΩ Min.
                            Withstanding voltage: 1500V AC/minute
           Assembly layout  *Contact H.R for details*

 Ordering code

A5082 H - 05P

Series No.
H=Housing
No. of circuits

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
