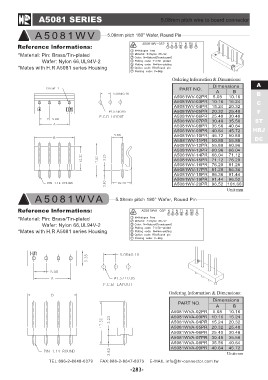

A5081 SERIES 5.08mm pitch wire to board connector

A5081WV 5.08mm pitch 180° Wafer, Round Pin

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A5081 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions A
B
A5081WV-02PR AB C
A5081WV-03PR 5.08 10.16 F
A5081WV-04PR 10.16 15.24 ST
A5081WV-05PR 15.24 20.32 HRJ
A5081WV-06PR 20.32 25.40 DC
A5081WV-07PR 25.40 30.48
A5081WV-08PR 30.48 35.56
A5081WV-09PR 35.56 40.64
A5081WV-10PR 40.64 45.72
A5081WV-11PR 45.72 50.80
A5081WV-12PR 50.80 55.88
A5081WV-13PR 55.88 60.96
A5081WV-14PR 60.96 66.04
A5081WV-15PR 66.04 71.12
A5081WV-16PR 71.12 76.20
A5081WV-17PR 76.20 81.28
A5081WV-18PR 81.28 86.36
A5081WV-19PR 86.36 91.44
A5081WV-20PR 91.44 96.52
96.52 101.60

Unit:mm

A 5 0 8 1 W VA 5.08mm pitch 180° Wafer, Round Pin

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A5081 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions

A5081WVA-02PR AB
A5081WVA-03PR 5.08 10.16
A5081WVA-04PR 10.16 15.24
A5081WVA-05PR 15.24 20.32
A5081WVA-06PR 20.32 25.40
A5081WVA-07PR 25.40 30.48
A5081WVA-08PR 30.48 35.56
A5081WVA-09PR 35.56 40.64
40.64 45.72

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-283-
