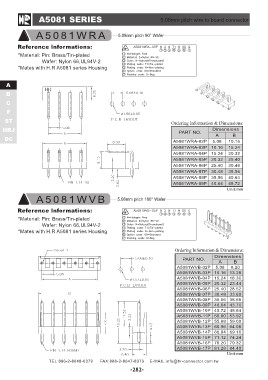

A5081 SERIES 5.08mm pitch wire to board connector

A5081WRA 5.08mm pitch 90° Wafer

Reference lnformations:
*Material: Pin: Brass/Tin-plated

Wafer: Nylon 66,UL94V-2
*Mates with H.R A5081 series Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A5081WRA-02P 5.08 10.16
DC
A5081WRA-03P 10.16 15.24
A5081WVB
A5081WRA-04P 15.24 20.32
Reference lnformations:
*Material: Pin: Brass/Tin-plated A5081WRA-05P 20.32 25.40

Wafer: Nylon 66,UL94V-2 A5081WRA-06P 25.40 30.48
*Mates with H.R A5081 series Housing
A5081WRA-07P 30.48 35.56

A5081WRA-08P 35.56 40.64

A5081WRA-09P 40.64 45.72

Unit:mm

5.08mm pitch 180° Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A5081WVB-02P 5.08 8.20

A5081WVB-03P 10.16 13.28

A5081WVB-04P 15.24 18.36

A5081WVB-05P 20.32 23.44

A5081WVB-06P 25.40 28.52

A5081WVB-07P 30.48 33.60

A5081WVB-08P 35.56 38.68

A5081WVB-09P 40.64 43.76

A5081WVB-10P 45.72 48.84

A5081WVB-11P 50.80 53.92

A5081WVB-12P 55.88 59.00

A5081WVB-13P 60.96 64.08

A5081WVB-14P 66.04 69.16

A5081WVB-15P 71.12 74.24

A5081WVB-16P 76.20 79.32

A5081WVB-17P 81.28 84.40
Unit:mm
