P. 297

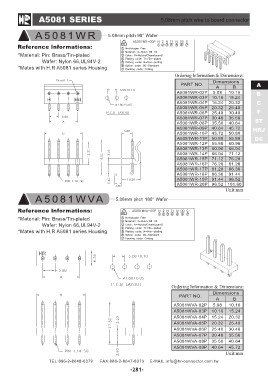

A5081 SERIES 5.08mm pitch wire to board connector
A5081WR 5.08mm pitch 90° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2
*Mates with H.R A5081 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions A
AB B
A5081WR-02P C
A5081WR-03P 5.08 10.16 F
A5081WR-04P 10.16 15.24 ST
15.24 20.32 HRJ
DC
A5081WR-05P 20.32 25.40
A5081WR-06P 25.40 30.48
A5081WR-07P 30.48 35.56
A5081WR-08P 35.56 40.64
A5081WR-09P 40.64 45.72
A5081WR-10P 45.72 50.80
A5081WR-11P 50.80 55.88
A5081WR-12P 55.88 60.96
A5081WR-13P 60.96 65.04
A5081WR-14P 66.04 71.12
A5081WR-15P 71.12 76.20
A5081WR-16P 76.20 81.28
A5081WR-17P 81.28 86.36
A5081WR-18P 86.36 91.44
A5081WR-19P 91.44 96.52
A5081WR-20P 96.52 101.60
Unit:mm
A 5 0 8 1 W VA 5.08mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2
*Mates with H.R A5081 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A5081WVA-02P 5.08 10.16
A5081WVA-03P 10.16 15.24
A5081WVA-04P 15.24 20.32
A5081WVA-05P 20.32 25.40
A5081WVA-06P 25.40 30.48
A5081WVA-07P 30.48 35.56
A5081WVA-08P 35.56 40.64
A5081WVA-09P 40.64 45.72
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-281-
