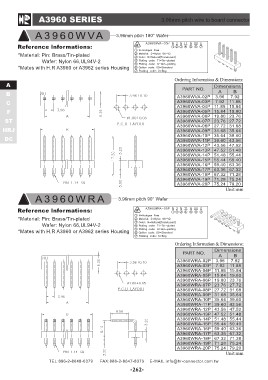

A3960 SERIES 3.96mm pitch wire to board connector

A 3 9 6 0 W VA 3.96mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing

Ordering Information & Dimensions:

A PART NO. Dimensions
B
C A3960WVA-02P AB
F A3960WVA-03P 3.96 7.92
ST A3960WVA-04P 7.92 11.88
HRJ A3960WVA-05P 11.88 15.84
DC A3960WVA-06P 15.84 19.80
A3960WVA-07P 19.80 23.76
A3960WVA-08P 23.76 27.72
A3960WVA-09P 27.72 31.68
A3960WVA-10P 31.68 35.64
A3960WVA-11P 35.64 39.60
A3960WVA-12P 39.60 43.56
A3960WVA-13P 43.56 47.52
A3960WVA-14P 47.52 51.48
A3960WVA-15P 51.48 55.44
A3960WVA-16P 55.44 59.40
A3960WVA-17P 59.40 63.36
A3960WVA-18P 63.36 67.32
A3960WVA-19P 67.32 71.28
A3960WVA-20P 71.28 75.24
75.24 79.20

Unit:mm

A3960WRA 3.96mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions

A3960WRA-02P AB
A3960WRA-03P 3.96 7.92
A3960WRA-04P 7.92 11.88
A3960WRA-05P 11.88 15.84
A3960WRA-06P 15.84 19.80
A3960WRA-07P 19.80 23.76
A3960WRA-08P 23.76 27.72
A3960WRA-09P 27.72 31.68
A3960WRA-10P 31.68 35.64
A3960WRA-11P 35.64 39.60
A3960WRA-12P 39.60 43.56
A3960WRA-13P 43.56 47.52
A3960WRA-14P 47.52 51.48
A3960WRA-15P 51.48 55.44
A3960WRA-16P 55.44 59.40
A3960WRA-17P 59.40 63.36
A3960WRA-18P 63.36 67.32
A3960WRA-19P 67.32 71.28
A3960WRA-20P 71.28 75.24
75.24 79.20

Unit:mm
