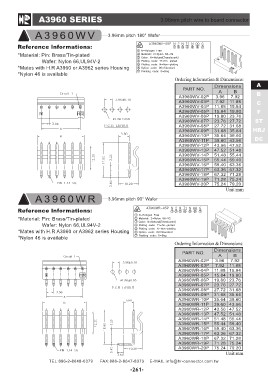

A3960 SERIES 3.96mm pitch wire to board connector

A3960WV 3.96mm pitch 180° Wafer

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
PART NO. Dimensions A
Wafer: Nylon 66,UL94V-2 B
*Mates with H.R A3960 or A3962 series Housing A3960WV-02P AB C
*Nylon 46 is available A3960WV-03P 3.96 7.92 F
A3960WV-04P 7.92 11.88 ST
A 3 9 6 0 W R 3.96mm pitch 90° Wafer A3960WV-05P 11.88 15.84 HRJ
A3960WV-06P 15.84 19.80 DC
A3960WV-07P 19.80 23.76
A3960WV-08P 23.76 27.72
A3960WV-09P 27.72 31.68
A3960WV-10P 31.68 35.64
A3960WV-11P 35.64 39.60
A3960WV-12P 39.60 43.56
A3960WV-13P 43.56 47.52
A3960WV-14P 47.52 51.48
A3960WV-15P 51.48 55.44
A3960WV-16P 55.44 59.40
A3960WV-17P 59.40 63.36
A3960WV-18P 63.36 67.32
A3960WV-19P 67.32 71.28
A3960WV-20P 71.28 75.24
75.24 79.20

Unit:mm

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A3960 or A3962 series Housing
*Nylon 46 is available

Ordering Information & Dimensions:

PART NO. Dimensions

A3960WR-02P AB
A3960WR-03P 3.96 7.92
A3960WR-04P 7.92 11.88
A3960WR-05P 11.88 15.84
A3960WR-06P 15.84 19.80
A3960WR-07P 19.80 23.76
A3960WR-08P 23.76 27.72
A3960WR-09P 27.72 31.68
A3960WR-10P 31.68 35.64
A3960WR-11P 35.64 39.60
A3960WR-12P 39.60 43.56
A3960WR-13P 43.56 47.52
A3960WR-14P 47.52 51.48
A3960WR-15P 51.48 55.44
A3960WR-16P 55.44 59.40
A3960WR-17P 59.40 63.36
A3960WR-18P 63.36 67.32
A3960WR-19P 67.32 71.28
A3960WR-20P 71.28 75.24
75.24 79.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-261-
