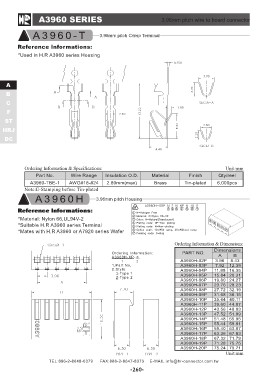

A3960 SERIES 3.96mm pitch wire to board connector

A3960-T 3.96mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A3960 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 6,000pcs
Brass Tin-plated
A3960-TBE-1 AWG#18-#24 2.80mm(max)
Note:E-Stamping before Tin-plated

A3960H 3.96mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-2
*Suitable H.R A3960 series Terminal
*Mates with H.R A3960 or A7920 series Wafer

Ordering Information & Dimensions:

Ordering Information: PART NO. Dimensions
A3960H-XP-＊
A3960H-02P AB
12 A3960H-03P 3.96 8.43
A3960H-04P 7.92 12.39
1.Part No. A3960H-05P 11.88 16.35
2.Style: A3960H-06P 15.84 20.31
A3960H-07P 19.80 24.27
1-Type 1 A3960H-08P 23.76 28.23
2-Type 2 A3960H-09P 27.72 32.19
A3960H-10P 31.68 36.15
A3960H-11P 35.64 40.11
A3960H-12P 39.60 44.07
A3960H-13P 43.56 48.03
A3960H-14P 47.52 51.99
A3960H-15P 51.48 55.95
A3960H-16P 55.44 59.91
A3960H-17P 59.40 63.87
A3960H-18P 63.36 67.83
A3960H-19P 67.32 71.79
A3960H-20P 71.28 75.75
75.24 79.71

Unit:mm
