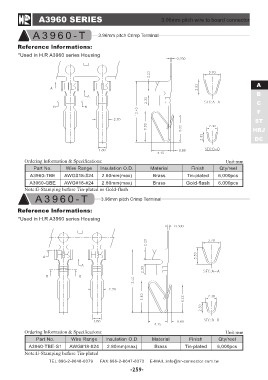

A3960 SERIES 3.96mm pitch wire to board connector
A3960-T 3.96mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A3960 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 6,000pcs
Tin-plated 6,000pcs
A3960-TBE AWG#18-#24 2.80mm(max) Brass Gold-flash
A3960-GBE AWG#18-#24 2.80mm(max) Brass
Note:E-Stamping before Tin-plated or Gold-flash
A3960-T 3.96mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A3960 series Housing
Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish
Brass Tin-plated 6,000pcs
A3960-TBE-S1 AWG#18-#24 2.80mm(max)
Note:E-Stamping before Tin-plated
