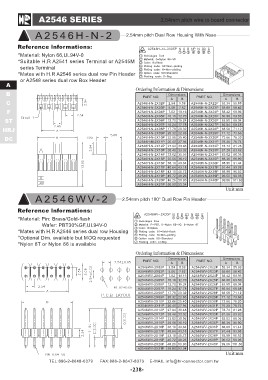

A2546 SERIES 2.54mm pitch wire to board connector

A2546H-N-2 2.54mm pitch Dual Row Housing With Nose

Reference lnformations:

A *Material: Nylon 66,UL94V-0
B *Suitable H.R A2541 series Terminal or A2545M
C series Terminal
F *Mates with H.R A2546 series dual row Pin Header
ST or A2548 series dual row Box Header
HRJ
DC Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
A2546H-N-2X02P AB A2546H-N-2X22P AB

2.54 5.08 53.34 55.88
55.88 58.42
A2546H-N-2X03P 5.08 7.62 A2546H-N-2X23P 58.42 60.96
60.96 63.50
A2546H-N-2X04P 7.62 10.16 A2546H-N-2X24P 63.50 66.04
A2546H-N-2X05P 10.16 12.70 A2546H-N-2X25P 66.04 68.58
A2546H-N-2X06P 12.70 15.24 A2546H-N-2X26P 68.58 71.12
A2546H-N-2X07P 15.24 17.78 A2546H-N-2X27P 71.12 73.66
A2546H-N-2X08P 17.78 20.32 A2546H-N-2X28P 73.66 76.20
A2546H-N-2X09P 20.32 22.86 A2546H-N-2X29P 76.20 78.74
A2546H-N-2X10P 22.86 25.40 A2546H-N-2X30P 78.74 81.28
A2546H-N-2X11P 25.40 27.94 A2546H-N-2X31P 81.28 83.82
A2546H-N-2X12P 27.94 30.48 A2546H-N-2X32P 83.82 86.36
A2546H-N-2X13P 30.48 33.02 A2546H-N-2X33P 86.36 88.90
A2546H-N-2X14P 33.02 35.56 A2546H-N-2X34P 88.90 91.44
A2546H-N-2X15P 35.56 38.10 A2546H-N-2X35P 91.44 93.98
93.98 96.52
A2546H-N-2X16P 38.10 40.64 A2546H-N-2X36P 96.52 99.06
A2546H-N-2X17P 40.64 43.18 A2546H-N-2X37P 99.06 101.60
A2546H-N-2X18P 43.18 45.72 A2546H-N-2X38P
A2546H-N-2X19P 45.72 48.26 A2546H-N-2X39P Unit:mm
A2546H-N-2X20P 48.26 50.80 A2546H-N-2X40P
A2546H-N-2X21P 50.80 53.34

A2546WV-2 2.54mm pitch 180° Dual Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0

*Mates with H.R A2546 series dual row Housing
*Optional Dim. available but MOQ requested
*Nylon 6T or Nylon 66 is available

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
A2546WV-2X02P A2546WV-2X22P
A2546WV-2X03P 2.54 5.08 A2546WV-2X23P 53.34 55.88
A2546WV-2X04P 5.08 7.62 A2546WV-2X24P 55.88 58.42
A2546WV-2X05P 7.62 10.16 A2546WV-2X25P 58.42 60.96
A2546WV-2X06P 10.16 12.70 A2546WV-2X26P 60.96 63.50
A2546WV-2X07P 12.70 15.24 A2546WV-2X27P 63.50 66.04
A2546WV-2X08P 15.24 17.78 A2546WV-2X28P 66.04 68.58
A2546WV-2X09P 17.78 20.32 A2546WV-2X29P 68.58 71.12
A2546WV-2X10P 20.32 22.86 A2546WV-2X30P 71.12 73.66
A2546WV-2X11P 22.86 25.40 A2546WV-2X31P 73.66 76.20
A2546WV-2X12P 25.40 27.94 A2546WV-2X32P 76.20 78.74
A2546WV-2X13P 27.94 30.48 A2546WV-2X33P 78.74 81.28
A2546WV-2X14P 30.48 33.02 A2546WV-2X34P 81.28 83.82
A2546WV-2X15P 33.02 35.56 A2546WV-2X35P 83.82 86.36
A2546WV-2X16P 35.56 38.10 A2546WV-2X36P 86.36 88.90
A2546WV-2X17P 38.10 40.64 A2546WV-2X37P 88.90 91.44
A2546WV-2X18P 40.64 43.18 A2546WV-2X38P 91.44 93.98
A2546WV-2X19P 43.18 45.72 A2546WV-2X39P 93.98 96.52
A2546WV-2X20P 45.72 48.26 A2546WV-2X40P 96.52 99.06
A2546WV-2X21P 48.26 50.80 99.06 101.60
50.80 53.34
Unit:mm
