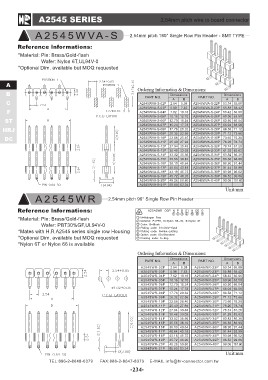

A2545 SERIES 2.54mm pitch wire to board connector

A 2 5 4 5 W VA - S 2.54mm pitch 180° Single Row Pin Header - SMT TYPE

Reference lnformations:
*Material: Pin: Brass/Gold-flash

Wafer: Nylon 6T,UL94V-0
*Optional Dim. available but MOQ requested

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F AB AB
ST A2545WVA-S-02P A2545WVA-S-22P
HRJ A2545WVA-S-03P 2.54 5.08 A2545WVA-S-23P 53.34 55.88
DC A2545WVA-S-04P 5.08 7.62 A2545WVA-S-24P 55.88 58.42
A2545WVA-S-05P 7.62 10.16 A2545WVA-S-25P 58.42 60.96
A2545WVA-S-06P 10.16 12.70 A2545WVA-S-26P 60.96 63.50
A2545WVA-S-07P 12.70 15.24 A2545WVA-S-27P 63.50 66.04
A2545WVA-S-08P 15.24 17.78 A2545WVA-S-28P 66.04 68.58
17.78 20.32 68.58 71.12
71.12 73.66
A2545WVA-S-09P 20.32 22.86 A2545WVA-S-29P 73.66 76.20
76.20 78.74
A2545WVA-S-10P 22.86 25.40 A2545WVA-S-30P 78.74 81.28
A2545WVA-S-11P 25.40 27.94 A2545WVA-S-31P 81.28 83.82
A2545WVA-S-12P 27.94 30.48 A2545WVA-S-32P 83.82 86.36
A2545WVA-S-13P 30.48 33.02 A2545WVA-S-33P 86.36 88.90
A2545WVA-S-14P 33.02 35.56 A2545WVA-S-34P 88.90 91.44
A2545WVA-S-15P 35.56 38.10 A2545WVA-S-35P 91.44 93.98
A2545WVA-S-16P 38.10 40.64 A2545WVA-S-36P 93.98 96.52
A2545WVA-S-17P 40.64 43.18 A2545WVA-S-37P 96.52 99.06
A2545WVA-S-18P 43.18 45.72 A2545WVA-S-38P 99.06 101.60
A2545WVA-S-19P 45.72 48.26 A2545WVA-S-39P
A2545WVA-S-20P 48.26 50.80 A2545WVA-S-40P Unit:mm
A2545WVA-S-21P 50.80 53.34

A2545WR 2.54mm pitch 90° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0

*Mates with H.R A2545 series single row Housing
*Optional Dim. available but MOQ requested
*Nylon 6T or Nylon 66 is available

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
A2545WR-02P A2545WR-22P
A2545WR-03P 2.54 5.08 A2545WR-23P 53.34 55.88
A2545WR-04P 5.08 7.62 A2545WR-24P 55.88 58.42
A2545WR-05P 7.62 10.16 A2545WR-25P 58.42 60.96
A2545WR-06P 10.16 12.70 A2545WR-26P 60.96 63.50
A2545WR-07P 12.70 15.24 A2545WR-27P 63.50 66.04
A2545WR-08P 15.24 17.78 A2545WR-28P 66.04 68.58
A2545WR-09P 17.78 20.32 A2545WR-29P 68.58 71.12
A2545WR-10P 20.32 22.86 A2545WR-30P 71.12 73.66
A 2 5 4 5 W R - 11 P 22.86 25.40 A2545WR-31P 73.66 76.20
A2545WR-12P 25.40 27.94 A2545WR-32P 76.20 78.74
27.94 30.48 78.74 81.28
81.28 83.82
A2545WR-13P 30.48 33.02 A2545WR-33P 83.82 86.36
A2545WR-14P 33.02 35.56 A2545WR-34P 86.36 88.90
A2545WR-15P 35.56 38.10 A2545WR-35P 88.90 91.44
A2545WR-16P 38.10 40.64 A2545WR-36P 91.44 93.98
A2545WR-17P 40.64 43.18 A2545WR-37P 93.98 96.52
A2545WR-18P 43.18 45.72 A2545WR-38P 96.52 99.06
A2545WR-19P 45.72 48.26 A2545WR-39P 99.06 101.60
A2545WR-20P 48.26 50.80 A2545WR-40P
A2545WR-21P 50.80 53.34 Unit:mm
