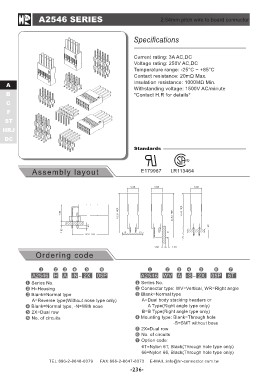

A2546 SERIES 2.54mm pitch wire to board connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987 ®

LR113464

Ordering code

A2546 H A -N - 2X 05P A2546 WV A -S - 2X 05P 6T

Series No. Series No.
H=Housing Connector type: WV=Vertical, WR=Right angle
Blank=Normal type Blank=Normal type
A=Reverse type(Without nose type only) A=Dual body stacking headers or
Blank=Normal type, -N=With nose
2X=Dual row A Type(Right angle type only)
No. of circuits B=B Type(Right angle type only)
Mounting type: Blank=Through hole

-S=SMT without boss
2X=Dual row
No. of circuits
Option code:

6T=Nylon 6T, Black(Through hole type only)
66=Nylon 66, Black(Through hole type only)

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-236-
