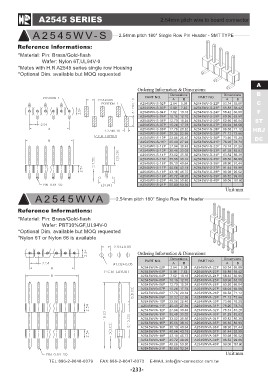

Page 249 - JOINT TECH

A2545 SERIES 2.54mm pitch wire to board connector

A2545WV-S 2.54mm pitch 180° Single Row Pin Header - SMT TYPE

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A2545 series single row Housing
*Optional Dim. available but MOQ requested

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB AB F
A2545WV-S-02P A2545WV-S-22P ST
A2545WV-S-03P 2.54 5.08 A2545WV-S-23P 53.34 55.88 HRJ
A2545WV-S-04P 5.08 7.62 A2545WV-S-24P 55.88 58.42 DC
A2545WV-S-05P 7.62 10.16 A2545WV-S-25P 58.42 60.96
A2545WV-S-06P 10.16 12.70 A2545WV-S-26P 60.96 63.50
A2545WV-S-07P 12.70 15.24 A2545WV-S-27P 63.50 66.04
A2545WV-S-08P 15.24 17.78 A2545WV-S-28P 66.04 68.58
17.78 20.32 68.58 71.12
71.12 73.66
A2545WV-S-09P 20.32 22.86 A2545WV-S-29P 73.66 76.20
76.20 78.74
A2545WV-S-10P 22.86 25.40 A2545WV-S-30P 78.74 81.28
A2545WV-S-11P 25.40 27.94 A2545WV-S-31P 81.28 83.82
A2545WV-S-12P 27.94 30.48 A2545WV-S-32P 83.82 86.36
A2545WV-S-13P 30.48 33.02 A2545WV-S-33P 86.36 88.90
A2545WV-S-14P 33.02 35.56 A2545WV-S-34P 88.90 91.44
A2545WV-S-15P 35.56 38.10 A2545WV-S-35P 91.44 93.98
A2545WV-S-16P 38.10 40.64 A2545WV-S-36P 93.98 96.52
A2545WV-S-17P 40.64 43.18 A2545WV-S-37P 96.52 99.06
A2545WV-S-18P 43.18 45.72 A2545WV-S-38P 99.06 101.60
A2545WV-S-19P 45.72 48.26 A2545WV-S-39P
A2545WV-S-20P 48.26 50.80 A2545WV-S-40P Unit:mm
A2545WV-S-21P 50.80 53.34

A 2 5 4 5 W VA 2.54mm pitch 180° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0

*Optional Dim. available but MOQ requested
*Nylon 6T or Nylon 66 is available

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
A2545WVA-02P A2545WVA-22P
A2545WVA-03P 2.54 5.08 A2545WVA-23P 53.34 55.88
A2545WVA-04P 5.08 7.62 A2545WVA-24P 55.88 58.42
A2545WVA-05P 7.62 10.16 A2545WVA-25P 58.42 60.96
A2545WVA-06P 10.16 12.70 A2545WVA-26P 60.96 63.50
A2545WVA-07P 12.70 15.24 A2545WVA-27P 63.50 66.04
A2545WVA-08P 15.24 17.78 A2545WVA-28P 66.04 68.58
A2545WVA-09P 17.78 20.32 A2545WVA-29P 68.58 71.12
A2545WVA-10P 20.32 22.86 A2545WVA-30P 71.12 73.66
A2545WVA-11P 22.86 25.40 A2545WVA-31P 73.66 76.20
A2545WVA-12P 25.40 27.94 A2545WVA-32P 76.20 78.74
27.94 30.48 78.74 81.28
81.28 83.82
A2545WVA-13P 30.48 33.02 A2545WVA-33P 83.82 86.36
A2545WVA-14P 33.02 35.56 A2545WVA-34P 86.36 88.90
A2545WVA-15P 35.56 38.10 A2545WVA-35P 88.90 91.44
A2545WVA-16P 38.10 40.64 A2545WVA-36P 91.44 93.98
A2545WVA-17P 40.64 43.18 A2545WVA-37P 93.98 96.52
A2545WVA-18P 43.18 45.72 A2545WVA-38P 96.52 99.06
A2545WVA-19P 45.72 48.26 A2545WVA-39P 99.06 101.60
A2545WVA-20P 48.26 50.80 A2545WVA-40P
A2545WVA-21P 50.80 53.34 Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
