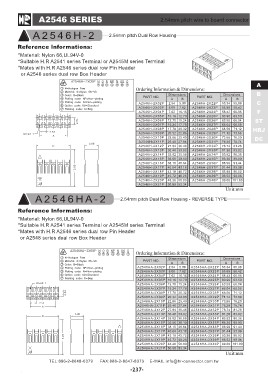

A2546 SERIES 2.54mm pitch wire to board connector

A2546H-2 2.54mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2541 series Terminal or A2545M series Terminal
*Mates with H.R A2546 series dual row Pin Header

or A2548 series dual row Box Header

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
A2546H-2X02P AB A2546H-2X22P AB F
ST
2.54 5.08 53.34 55.88 HRJ
55.88 58.42 DC
A2546H-2X03P 5.08 7.62 A2546H-2X23P 58.42 60.96
60.96 63.50
A2546H-2X04P 7.62 10.16 A2546H-2X24P 63.50 66.04
A2546H-2X05P 10.16 12.70 A2546H-2X25P 66.04 68.58
A2546H-2X06P 12.70 15.24 A2546H-2X26P 68.58 71.12
A2546H-2X07P 15.24 17.78 A2546H-2X27P 71.12 73.66
A2546H-2X08P 17.78 20.32 A2546H-2X28P 73.66 76.20
A2546H-2X09P 20.32 22.86 A2546H-2X29P 76.20 78.74
A2546H-2X10P 22.86 25.40 A2546H-2X30P 78.74 81.28
A 2 5 4 6 H - 2 X 11 P 25.40 27.94 A2546H-2X31P 81.28 83.82
A2546H-2X12P 27.94 30.48 A2546H-2X32P 83.82 86.36
A2546H-2X13P 30.48 33.02 A2546H-2X33P 86.36 88.90
A2546H-2X14P 33.02 35.56 A2546H-2X34P 88.90 91.44
A2546H-2X15P 35.56 38.10 A2546H-2X35P 91.44 93.98
93.98 96.52
A2546H-2X16P 38.10 40.64 A2546H-2X36P 96.52 99.06
A2546H-2X17P 40.64 43.18 A2546H-2X37P 99.06 101.60
A2546H-2X18P 43.18 45.72 A2546H-2X38P
A2546H-2X19P 45.72 48.26 A2546H-2X39P Unit:mm
A2546H-2X20P 48.26 50.80 A2546H-2X40P
A2546H-2X21P 50.80 53.34

A2546HA-2 2.54mm pitch Dual Row Housing - REVERSE TYPE

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2541 series Terminal or A2545M series Terminal
*Mates with H.R A2546 series dual row Pin Header
or A2548 series dual row Box Header

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
A2546HA-2X22P
A2546HA-2X02P 2.54 5.08 A2546HA-2X23P 53.34 55.88
A2546HA-2X24P 55.88 58.42
A2546HA-2X03P 5.08 7.62 A2546HA-2X25P 58.42 60.96
A2546HA-2X26P 60.96 63.50
A2546HA-2X04P 7.62 10.16 A2546HA-2X27P 63.50 66.04
A2546HA-2X28P 66.04 68.58
A2546HA-2X05P 10.16 12.70 A2546HA-2X29P 68.58 71.12
A2546HA-2X30P 71.12 73.66
A2546HA-2X06P 12.70 15.24 A2546HA-2X31P 73.66 76.20
A2546HA-2X32P 76.20 78.74
A2546HA-2X07P 15.24 17.78 A2546HA-2X33P 78.74 81.28
A2546HA-2X34P 81.28 83.82
A2546HA-2X08P 17.78 20.32 A2546HA-2X35P 83.82 86.36
A2546HA-2X36P 86.36 88.90
A2546HA-2X09P 20.32 22.86 A2546HA-2X37P 88.90 91.44
A2546HA-2X38P 91.44 93.98
A2546HA-2X10P 22.86 25.40 A2546HA-2X39P 93.98 96.52
A2546HA-2X40P 96.52 99.06
A2546HA-2X11P 25.40 27.94 99.06 101.60

A2546HA-2X12P 27.94 30.48 Unit:mm

A2546HA-2X13P 30.48 33.02

A2546HA-2X14P 33.02 35.56

A2546HA-2X15P 35.56 38.10

A2546HA-2X16P 38.10 40.64

A2546HA-2X17P 40.64 43.18

A2546HA-2X18P 43.18 45.72

A2546HA-2X19P 45.72 48.26

A2546HA-2X20P 48.26 50.80

A2546HA-2X21P 50.80 53.34

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-237-
