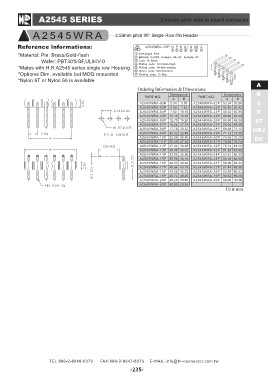

A2545 SERIES 2.54mm pitch wire to board connector

A2545WRA 2.54mm pitch 90° Single Row Pin Header

Reference lnformations: A
B
*Material: Pin: Brass/Gold-flash C
Wafer: PBT30%GF,UL94V-0 F
ST
*Mates with H.R A2545 series single row Housing HRJ
*Optional Dim. available but MOQ requested DC
*Nylon 6T or Nylon 66 is available

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
AB AB
A2545WRA-02P A2545WRA-22P
A2545WRA-03P 2.54 5.08 A2545WRA-23P 53.34 55.88
A2545WRA-04P 5.08 7.62 A2545WRA-24P 55.88 58.42
A2545WRA-05P 7.62 10.16 A2545WRA-25P 58.42 60.96
A2545WRA-06P 10.16 12.70 A2545WRA-26P 60.96 63.50
A2545WRA-07P 12.70 15.24 A2545WRA-27P 63.50 66.04
A2545WRA-08P 15.24 17.78 A2545WRA-28P 66.04 68.58
A2545WRA-09P 17.78 20.32 A2545WRA-29P 68.58 71.12
20.32 22.86 71.12 73.66
73.66 76.20
A2545WRA-10P 22.86 25.40 A2545WRA-30P 76.20 78.74
A 2 5 4 5 W R A - 11 P 25.40 27.94 A2545WRA-31P 78.74 81.28
A2545WRA-12P 27.94 30.48 A2545WRA-32P 81.28 83.82
A2545WRA-13P 30.48 33.02 A2545WRA-33P 83.82 86.36
A2545WRA-14P 33.02 35.56 A2545WRA-34P 86.36 88.90
A2545WRA-15P 35.56 38.10 A2545WRA-35P 88.90 91.44
A2545WRA-16P 38.10 40.64 A2545WRA-36P 91.44 93.98
A2545WRA-17P 40.64 43.18 A2545WRA-37P 93.98 96.52
A2545WRA-18P 43.18 45.72 A2545WRA-38P 96.52 99.06
A2545WRA-19P 45.72 48.26 A2545WRA-39P 99.06 101.60
A2545WRA-20P 48.26 50.80 A2545WRA-40P
A2545WRA-21P 50.80 53.34 Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-235-
