P. 248

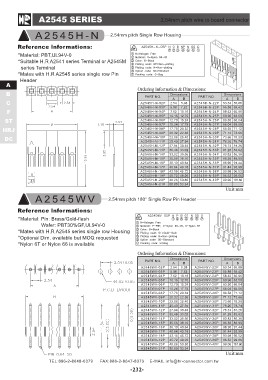

A2545 SERIES 2.54mm pitch wire to board connector
A 2 5 4 5 H - N 2.54mm pitch Single Row Housing
Reference lnformations:
*Material: PBT,UL94V-0 Ordering Information & Dimensions:
*Suitable H.R A2541 series Terminal or A2545M
PART NO. Dimensions PART NO. Dimensions
series Terminal AB AB
*Mates with H.R A2545 series single row Pin A2545H-N-02P A2545H-N-22P
Header A2545H-N-03P 2.54 5.08 A2545H-N-23P 53.34 55.88
A A2545H-N-04P 5.08 7.62 A2545H-N-24P 55.88 58.42
A2545H-N-05P 7.62 10.16 A2545H-N-25P 58.42 60.96
B A2545H-N-06P 10.16 12.70 A2545H-N-26P 60.96 63.50
A2545H-N-07P 12.70 15.24 A2545H-N-27P 63.50 66.04
C A2545H-N-08P 15.24 17.78 A2545H-N-28P 66.04 68.58
A2545H-N-09P 17.78 20.32 A2545H-N-29P 68.58 71.12
F 20.32 22.86 71.12 73.66
73.66 76.20
ST A2545H-N-10P 22.86 25.40 A2545H-N-30P 76.20 78.74
A 2 5 4 5 H - N - 11 P 25.40 27.94 A2545H-N-31P 78.74 81.28
HRJ A2545H-N-12P 27.94 30.48 A2545H-N-32P 81.28 83.82
A2545H-N-13P 30.48 33.02 A2545H-N-33P 83.82 86.36
DC A2545H-N-14P 33.02 35.56 A2545H-N-34P 86.36 88.90
A2545H-N-15P 35.56 38.10 A2545H-N-35P 88.90 91.44
A2545H-N-16P 38.10 40.64 A2545H-N-36P 91.44 93.98
A2545H-N-17P 40.64 43.18 A2545H-N-37P 93.98 96.52
A2545H-N-18P 43.18 45.72 A2545H-N-38P 96.52 99.06
A2545H-N-19P 45.72 48.26 A2545H-N-39P 99.06 101.60
A2545H-N-20P 48.26 50.80 A2545H-N-40P
A2545H-N-21P 50.80 53.34 Unit:mm
A2545WV 2.54mm pitch 180° Single Row Pin Header
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0
*Mates with H.R A2545 series single row Housing
*Optional Dim. available but MOQ requested
*Nylon 6T or Nylon 66 is available
Ordering Information & Dimensions:
PART NO. Dimensions PART NO. Dimensions
AB AB
A2545WV-02P A2545WV-22P
A2545WV-03P 2.54 5.08 A2545WV-23P 53.34 55.88
A2545WV-04P 5.08 7.62 A2545WV-24P 55.88 58.42
A2545WV-05P 7.62 10.16 A2545WV-25P 58.42 60.96
A2545WV-06P 10.16 12.70 A2545WV-26P 60.96 63.50
A2545WV-07P 12.70 15.24 A2545WV-27P 63.50 66.04
A2545WV-08P 15.24 17.78 A2545WV-28P 66.04 68.58
A2545WV-09P 17.78 20.32 A2545WV-29P 68.58 71.12
A2545WV-10P 20.32 22.86 A2545WV-30P 71.12 73.66
A 2 5 4 5 W V- 11 P 22.86 25.40 A2545WV-31P 73.66 76.20
A2545WV-12P 25.40 27.94 A2545WV-32P 76.20 78.74
27.94 30.48 78.74 81.28
81.28 83.82
A2545WV-13P 30.48 33.02 A2545WV-33P 83.82 86.36
A2545WV-14P 33.02 35.56 A2545WV-34P 86.36 88.90
A2545WV-15P 35.56 38.10 A2545WV-35P 88.90 91.44
A2545WV-16P 38.10 40.64 A2545WV-36P 91.44 93.98
A2545WV-17P 40.64 43.18 A2545WV-37P 93.98 96.52
A2545WV-18P 43.18 45.72 A2545WV-38P 96.52 99.06
A2545WV-19P 45.72 48.26 A2545WV-39P 99.06 101.60
A2545WV-20P 48.26 50.80 A2545WV-40P
A2545WV-21P 50.80 53.34 Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-232-
