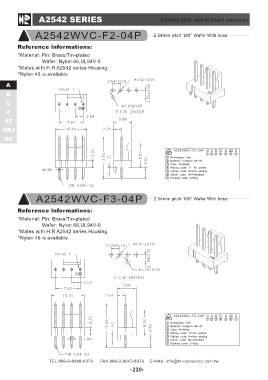

A2542 SERIES 2.54mm pitch wire to board connector

A2542WVC-F2-04P 2.54mm pitch 180° Wafer With boss

Reference lnformations:
*Material: Pin: Brass/Tin-plated

Wafer: Nylon 66,UL94V-0
*Mates with H.R A2542 series Housing
*Nylon 46 is available

A
B
C
F
ST
HRJ
DC

A2542WVC-F3-04P 2.54mm pitch 180° Wafer With boss

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A2542 series Housing
*Nylon 46 is available

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-220-
