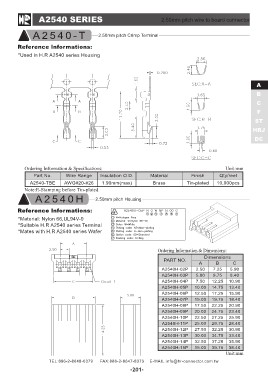

A2540 SERIES 2.50mm pitch wire to board connector

A2540-T 2.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2540 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Brass Tin-plated
A2540-TBE AWG#20-#26 1.90mm(max)

Note:E-Stamping before Tin-plated

A 2 5 4 0 H 2.50mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2540 series Terminal
*Mates with H.R A2540 series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A2540H-02P 2.50 7.25 5.90

A2540H-03P 5.00 9.75 8.40

A2540H-04P 7.50 12.25 10.90

A2540H-05P 10.00 14.75 13.40

A2540H-06P 12.50 17.25 15.90

A2540H-07P 15.00 19.75 18.40

A2540H-08P 17.50 22.25 20.90

A2540H-09P 20.00 24.75 23.40

A2540H-10P 22.50 27.25 25.90

A2540H-11P 25.00 29.75 28.40

A2540H-12P 27.50 32.25 30.90

A2540H-13P 30.00 34.75 33.40

A2540H-14P 32.50 37.25 35.90

A2540H-15P 35.00 39.75 38.40

Unit:mm
