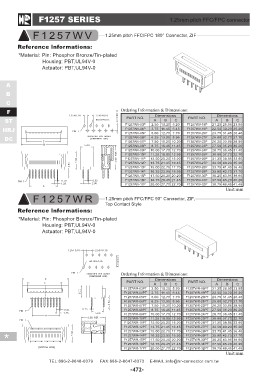

F1257 SERIES 1.25mm pitch FFC/FPC connector

F1257WV 1.25mm pitch FFC/FPC 180° Connector, ZIF

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Housing: PBT,UL94V-0
Actuator: PBT,UL94V-0

A

B

C Ordering Information & Dimensions:
F
ST PART NO. Dimensions PART NO. Dimensions
HRJ ABC ABC
DC F1257WV-03P 2.50 10.20 5.20 F1257WV-18P 21.25 28.95 23.95
F1257WV-04P 3.75 11.45 6.45 F1257WV-19P 22.50 30.20 25.20
F1257WR F1257WV-05P 5.00 12.70 7.70 F1257WV-20P 23.75 31.45 26.45
F1257WV-06P 6.25 13.95 8.95 F1257WV-21P 25.00 32.70 27.70
Reference lnformations: F1257WV-07P 7.50 15.20 10.20 F1257WV-22P 26.25 33.95 28.95
F1257WV-08P 8.75 16.45 11.45 F1257WV-23P 27.50 35.20 30.20
F1257WV-09P 10.00 17.70 12.70 F1257WV-24P 28.75 36.45 31.45
F1257WV-10P 11.25 18.95 13.95 F1257WV-25P 30.00 37.70 32.70
F1257WV-11P 12.50 20.20 15.20 F1257WV-26P 31.25 38.95 33.95
F1257WV-12P 13.75 21.45 16.45 F1257WV-27P 32.50 40.20 35.20
F1257WV-13P 15.00 22.70 17.70 F1257WV-28P 33.75 41.45 36.45
F1257WV-14P 16.25 23.95 18.95 F1257WV-29P 35.00 42.70 37.70
F1257WV-15P 17.50 25.20 20.20 F1257WV-30P 36.25 43.95 38.95
F1257WV-16P 18.75 26.45 21.45 F1257WV-31P 37.50 45.20 40.20
F1257WV-17P 20.00 27.70 22.70 F1257WV-32P 38.75 46.45 41.45

Unit:mm

1.25mm pitch FFC/FPC 90° Connector, ZIF,
Top Contact Style

*Material: Pin: Phosphor Bronze/Tin-plated
Housing: PBT,UL94V-0
Actuator: PBT,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions PART NO. Dimensions
ABC ABC

F1257WR-03PT 2.50 10.20 5.20 F1257WR-18PT 21.25 28.95 23.95

F1257WR-04PT 3.75 11.45 6.45 F1257WR-19PT 22.50 30.20 25.20

F1257WR-05PT 5.00 12.70 7.70 F1257WR-20PT 23.75 31.45 26.45

F1257WR-06PT 6.25 13.95 8.95 F1257WR-21PT 25.00 32.70 27.70

F1257WR-07PT 7.50 15.20 10.20 F1257WR-22PT 26.25 33.95 28.95

F1257WR-08PT 8.75 16.45 11.45 F1257WR-23PT 27.50 35.20 30.20

F1257WR-09PT 10.00 17.70 12.70 F1257WR-24PT 28.75 36.45 31.45

F1257WR-10PT 11.25 18.95 13.95 F1257WR-25PT 30.00 37.70 32.70

F1257WR-11PT 12.50 20.20 15.20 F1257WR-26PT 31.25 38.95 33.95

F1257WR-12PT 13.75 21.45 16.45 F1257WR-27PT 32.50 40.20 35.20

F1257WR-13PT 15.00 22.70 17.70 F1257WR-28PT 33.75 41.45 36.45

* F1257WR-14PT 16.25 23.95 18.95 F1257WR-29PT 35.00 42.70 37.70
F1257WR-15PT 17.50 25.20 20.20 F1257WR-30PT 36.25 43.95 38.95
F1257WR-16PT 18.75 26.45 21.45 F1257WR-31PT 37.50 45.20 40.20

F1257WR-17PT 20.00 27.70 22.70 F1257WR-32PT 38.75 46.45 41.45

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-472-
