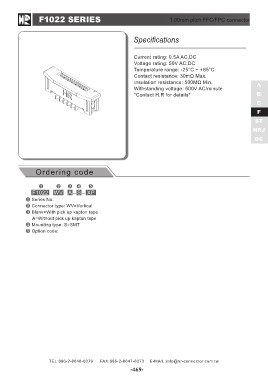

F1022 SERIES 1.00mm pitch FFC/FPC connector
Ordering code Specifications
F1022 WV A - S - XP Current rating: 0.5A AC,DC A
Voltage rating: 50V AC,DC B
Series No. Temperature range: -25°C ~ +85°C C
Connector type: WV=Vertical Contact resistance: 30mΩ Max. F
Blank=With pick up kapton tape Insulation resistance: 500MΩ Min. ST
A=Without pick up kapton tape Withstanding voltage: 500V AC/minute HRJ
Mounting type: S=SMT *Contact H.R for details* DC
Option code:
