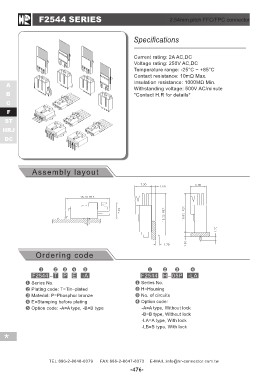

F2544 SERIES 2.54mm pitch FFC/FPC connector

A Specifications
B
C Current rating: 2A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*

Ordering code

F2544 - T P E -A F2544 H - 05P -LA

Series No. Series No.
Plating code: T=Tin–plated H=Housing
Material: P=Phosphor bronze No. of circuits
E=Stamping before plating Option code:
Option code: -A=A type, -B=B type -A=A type, Without lock
-B=B type, Without lock
* -LA=A type, With lock
-LB=B type, With lock

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-476-
