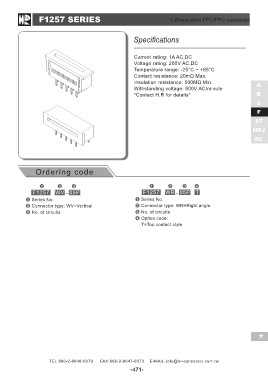

F1257 SERIES 1.25mm pitch FFC/FPC connector

Ordering code Specifications

F1257 WV - 05P Current rating: 1A AC,DC A
Voltage rating: 200V AC,DC B
Series No. Temperature range: -25°C ~ +85°C C
Connector type: WV=Vertical Contact resistance: 20mΩ Max. F
No. of circuits Insulation resistance: 500MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC

F1257 WR - 05P T

Series No.
Connector type: WR=Right angle
No. of circuits
Option code:
T=Top contact style

*

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-471-
