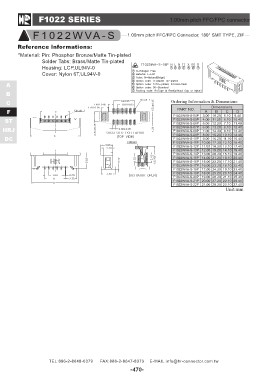

F1022 SERIES 1.00mm pitch FFC/FPC connector

F 1 0 2 2 W VA - S 1.00mm pitch FFC/FPC Connector, 180° SMT TYPE, ZIF

Reference lnformations:

*Material: Pin: Phosphor Bronze/Matte Tin-plated
Solder Tabs: Brass/Matte Tin-plated
Housing: LCP,UL94V-0
Cover: Nylon 6T,UL94V-0

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST F1022WVA-S-04P ABCD
HRJ F1022WVA-S-05P
DC F1022WVA-S-06P 3.00 10.20 5.10 9.40
F1022WVA-S-07P 4.00 11.20 6.10 10.40
F1022WVA-S-08P 5.00 12.20 7.10 11.40
F1022WVA-S-09P 6.00 13.20 8.10 12.40
F1022WVA-S-10P 7.00 14.20 9.10 13.40
F1022WVA-S-11P 8.00 15.20 10.10 14.40
F1022WVA-S-12P 9.00 16.20 11.10 15.40
F1022WVA-S-13P 10.00 17.20 12.10 16.40
F1022WVA-S-14P 11.00 18.20 13.10 17.40
F1022WVA-S-15P 12.00 19.20 14.10 18.40
F1022WVA-S-16P 13.00 20.20 15.10 19.40
F1022WVA-S-17P 14.00 21.20 16.10 20.40
F1022WVA-S-18P 15.00 22.20 17.10 21.40
F1022WVA-S-19P 16.00 23.20 18.10 22.40
F1022WVA-S-20P 17.00 24.20 19.10 23.40
F1022WVA-S-21P 18.00 25.20 20.10 24.40
F1022WVA-S-22P 19.00 26.20 21.10 25.40
20.00 27.20 22.10 26.40
21.00 28.20 23.10 27.40

Unit:mm
