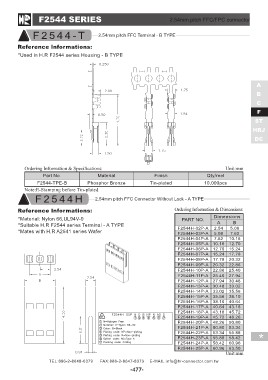

F2544 SERIES 2.54mm pitch FFC/FPC connector

F2544-T 2.54mm pitch FFC Terminal - B TYPE

Reference lnformations:
*Used in H.R F2544 series Housing - B TYPE

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm

Part No. Material Finish Qty/reel

F2544-TPE-B Phosphor Bronze Tin-plated 10,000pcs

Note:E-Stamping before Tin-plated

AF 20 58 40 40 H I 2.54mm pitch FFC Connector Without Lock - A TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66,UL94V-0 PART NO. Dimensions
*Suitable H.R F2544 series Terminal - A TYPE
*Mates with H.R A2541 series Wafer F2544H-02P-A AB
F2544H-03P-A
F2544H-04P-A 2.54 5.08 *
F2544H-05P-A 5.08 7.62
F2544H-06P-A 7.62 10.16
F2544H-07P-A 10.16 12.70
F2544H-08P-A 12.70 15.24
F2544H-09P-A 15.24 17.78
F2544H-10P-A 17.78 20.32
F2544H-11P-A
F2544H-12P-A 20.32 22.86
F2544H-13P-A
F2544H-14P-A 22.86 25.40
F2544H-15P-A
F2544H-16P-A 25.40 27.94
F2544H-17P-A 27.94 30.48
F2544H-18P-A 30.48 33.02
F2544H-19P-A 33.02 35.56
F2544H-20P-A 35.56 38.10
F2544H-21P-A 38.10 40.64
F2544H-22P-A 40.64 43.18
F2544H-23P-A 43.18 45.72
F2544H-24P-A 45.72 48.26
F2544H-25P-A 48.26 50.80
50.80 53.34
53.34 55.88
55.88 58.42
58.42 60.96
60.96 63.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
