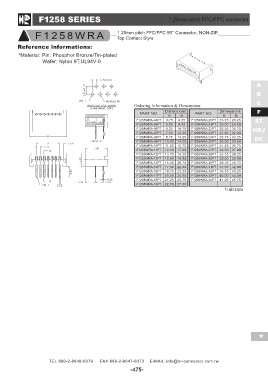

F1258 SERIES 1.25mm pitch FFC/FPC connector

F1258WRA 1.25mm pitch FFC/FPC 90° Connector, NON-ZIF,
Top Contact Style

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 9T,UL94V-0

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB AB F
F1258WRA-04PT F1258WRA-20PT ST
F1258WRA-05PT 3.75 8.25 F1258WRA-21PT 23.75 28.25 HRJ
F1258WRA-06PT 5.00 9.50 F1258WRA-22PT 25.00 29.50 DC
F1258WRA-07PT 6.25 10.75 F1258WRA-23PT 26.25 30.75
F1258WRA-08PT 7.50 12.00 F1258WRA-24PT 27.50 32.00
F1258WRA-09PT 8.75 13.25 F1258WRA-25PT 28.75 33.25
F1258WRA-10PT 10.00 14.50 F1258WRA-26PT 30.00 34.50
F1258WRA-11PT 11.25 15.75 F1258WRA-27PT 31.25 35.75
F1258WRA-12PT 12.50 17.00 F1258WRA-28PT 32.50 37.00
F1258WRA-13PT 13.75 18.25 F1258WRA-29PT 33.75 38.25
F1258WRA-14PT 15.00 19.50 F1258WRA-30PT 35.00 39.50
F1258WRA-15PT 16.25 20.75 F1258WRA-31PT 36.25 40.75
F1258WRA-16PT 17.50 22.00 F1258WRA-32PT 37.50 42.00
F1258WRA-17PT 18.75 23.25 F1258WRA-33PT 38.75 43.25
F1258WRA-18PT 20.00 24.50 F1258WRA-34PT 40.00 44.50
F1258WRA-19PT 21.25 25.75 41.25 45.75
22.50 27.00
Unit:mm

*
