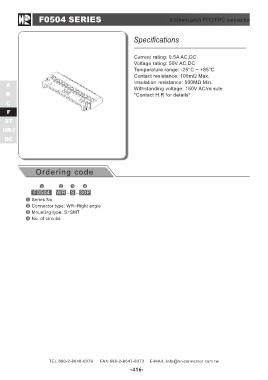

F0504 SERIES 0.50mm pitch FFC/FPC connector
A Specifications
B
C Current rating: 0.5A AC,DC
F Voltage rating: 50V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 100mΩ Max.
DC Insulation resistance: 500MΩ Min.
Withstanding voltage: 150V AC/minute
Ordering code *Contact H.R for details*
F0504 WR - S - 30P
Series No.
Connector type: WR=Right angle
Mounting type: S=SMT
No. of circuits
