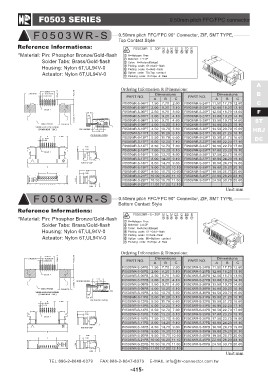

F0503 SERIES 0.50mm pitch FFC/FPC connector
F0503WR-S 0.50mm pitch FFC/FPC 90° Connector, ZIF, SMT TYPE,
Top Contact Style
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Gold-flash
Housing: Nylon 6T,UL94V-0
Actuator: Nylon 6T,UL94V-0
Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
ABC ABC F
ST
F0503WR-S-04PT 1.50 7.70 2.60 F0503WR-S-24PT 11.50 17.70 12.60 HRJ
DC
F0503WR-S-05PT 2.00 8.20 3.10 F0503WR-S-25PT 12.00 18.20 13.10
F0503WR-S-06PT 2.50 8.70 3.60 F0503WR-S-26PT 12.50 18.70 13.60
F0503WR-S-07PT 3.00 9.20 4.10 F0503WR-S-27PT 13.00 19.20 14.10
F0503WR-S-08PT 3.50 9.70 4.60 F0503WR-S-28PT 13.50 19.70 14.60
F0503WR-S-09PT 4.00 10.20 5.10 F0503WR-S-29PT 14.00 20.20 15.10
F0503WR-S-10PT 4.50 10.70 5.60 F0503WR-S-30PT 14.50 20.70 15.60
F0503WR-S-11PT 5.00 11.20 6.10 F0503WR-S-31PT 15.00 21.20 16.10
F0503WR-S-12PT 5.50 11.70 6.60 F0503WR-S-32PT 15.50 21.70 16.60
F0503WR-S-13PT 6.00 12.20 7.10 F0503WR-S-33PT 16.00 22.20 17.10
F0503WR-S-14PT 6.50 12.70 7.60 F0503WR-S-34PT 16.50 22.70 17.60
F0503WR-S-15PT 7.00 13.20 8.10 F0503WR-S-35PT 17.00 23.20 18.10
F0503WR-S-16PT 7.50 13.70 8.60 F0503WR-S-36PT 17.50 23.70 18.60
F0503WR-S-17PT 8.00 14.20 9.10 F0503WR-S-37PT 18.00 24.20 19.10
F0503WR-S-18PT 8.50 14.70 9.60 F0503WR-S-38PT 18.50 24.70 19.60
F0503WR-S-19PT 9.00 15.20 10.10 F0503WR-S-39PT 19.00 25.20 20.10
F0503WR-S-20PT 9.50 15.70 10.60 F0503WR-S-40PT 19.50 25.70 20.60
F0503WR-S-21PT 10.00 16.20 11.10 F0503WR-S-45PT 22.00 28.20 23.10
F0503WR-S-22PT 10.50 16.70 11.60 F0503WR-S-50PT 24.50 30.70 25.60
F0503WR-S-23PT 11.00 17.20 12.10
Unit:mm
F0503WR-S 0.50mm pitch FFC/FPC 90° Connector, ZIF, SMT TYPE,
Bottom Contact Style
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Gold-flash
Housing: Nylon 6T,UL94V-0
Actuator: Nylon 6T,UL94V-0
Ordering Information & Dimensions:
PART NO. Dimensions PART NO. Dimensions
ABC ABC
F0503WR-S-04PB 1.50 7.70 2.60 F0503WR-S-24PB 11.50 17.70 12.60
F0503WR-S-05PB 2.00 8.20 3.10 F0503WR-S-25PB 12.00 18.20 13.10
F0503WR-S-06PB 2.50 8.70 3.60 F0503WR-S-26PB 12.50 18.70 13.60
F0503WR-S-07PB 3.00 9.20 4.10 F0503WR-S-27PB 13.00 19.20 14.10
F0503WR-S-08PB 3.50 9.70 4.60 F0503WR-S-28PB 13.50 19.70 14.60
F0503WR-S-09PB 4.00 10.20 5.10 F0503WR-S-29PB 14.00 20.20 15.10
F0503WR-S-10PB 4.50 10.70 5.60 F0503WR-S-30PB 14.50 20.70 15.60
F0503WR-S-11PB 5.00 11.20 6.10 F0503WR-S-31PB 15.00 21.20 16.10
F0503WR-S-12PB 5.50 11.70 6.60 F0503WR-S-32PB 15.50 21.70 16.60
F0503WR-S-13PB 6.00 12.20 7.10 F0503WR-S-33PB 16.00 22.20 17.10
F0503WR-S-14PB 6.50 12.70 7.60 F0503WR-S-34PB 16.50 22.70 17.60
F0503WR-S-15PB 7.00 13.20 8.10 F0503WR-S-35PB 17.00 23.20 18.10
F0503WR-S-16PB 7.50 13.70 8.60 F0503WR-S-36PB 17.50 23.70 18.60
F0503WR-S-17PB 8.00 14.20 9.10 F0503WR-S-37PB 18.00 24.20 19.10
F0503WR-S-18PB 8.50 14.70 9.60 F0503WR-S-38PB 18.50 24.70 19.60
F0503WR-S-19PB 9.00 15.20 10.10 F0503WR-S-39PB 19.00 25.20 20.10
F0503WR-S-20PB 9.50 15.70 10.60 F0503WR-S-40PB 19.50 25.70 20.60
F0503WR-S-21PB 10.00 16.20 11.10 F0503WR-S-45PB 22.00 28.20 23.10
F0503WR-S-22PB 10.50 16.70 11.60 F0503WR-S-50PB 24.50 30.70 25.60
F0503WR-S-23PB 11.00 17.20 12.10
Unit:mm
