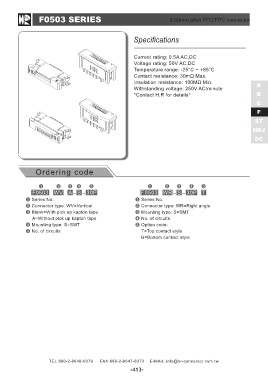

F0503 SERIES 0.50mm pitch FFC/FPC connector
Ordering code Specifications
F0503 WV A - S - 30P Current rating: 0.5A AC,DC A
Voltage rating: 50V AC,DC B
Series No. Temperature range: -25°C ~ +85°C C
Connector type: WV=Vertical Contact resistance: 30mΩ Max. F
Blank=With pick up kapton tape Insulation resistance: 100MΩ Min. ST
A=Without pick up kapton tape Withstanding voltage: 250V AC/minute HRJ
Mounting type: S=SMT *Contact H.R for details* DC
No. of circuits
F0503 WR - S - 30P T
Series No.
Connector type: WR=Right angle
Mounting type: S=SMT
No. of circuits
Option code:
T=Top contact style
B=Bottom contact style
