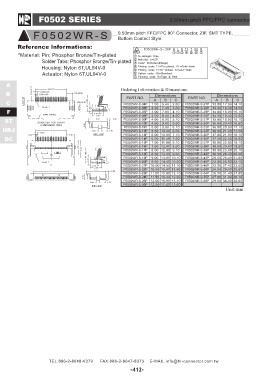

F0502 SERIES 0.50mm pitch FFC/FPC connector

FA00580020WH IR - S 0.50mm pitch FFC/FPC 90° Connector, ZIF, SMT TYPE,
Bottom Contact Style

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Phosphor Bronze/Tin-plated
Housing: Nylon 6T,UL94V-0
Actuator: Nylon 6T,UL94V-0

A Ordering Information & Dimensions:
B
C PART NO. Dimensions PART NO. Dimensions
F
ST F0502WR-S-04P ABC F0502WR-S-27P ABC
HRJ F0502WR-S-06P F0502WR-S-28P
DC F0502WR-S-07P 1.50 6.40 2.60 F0502WR-S-29P 13.00 17.90 14.10
F0502WR-S-08P 2.50 7.40 3.60 F0502WR-S-30P 13.50 18.40 14.60
F0502WR-S-09P 3.00 7.90 4.10 F0502WR-S-31P 14.00 18.90 15.10
F0502WR-S-10P 3.50 8.40 4.60 F0502WR-S-32P 14.50 19.40 15.60
F0502WR-S-11P 4.00 8.90 5.10 F0502WR-S-33P 15.00 19.90 16.10
F0502WR-S-12P 4.50 9.40 5.60 F0502WR-S-34P 15.50 20.40 16.60
F0502WR-S-13P 5.00 9.90 6.10 F0502WR-S-35P 16.00 20.90 17.10
F0502WR-S-14P 5.50 10.40 6.60 F0502WR-S-36P 16.50 21.40 17.60
F0502WR-S-15P 6.00 10.90 7.10 F0502WR-S-37P 17.00 21.90 18.10
F0502WR-S-16P 6.50 11.40 7.60 F0502WR-S-38P 17.50 22.40 18.60
F0502WR-S-17P 7.00 11.90 8.10 F0502WR-S-39P 18.00 22.90 19.10
F0502WR-S-18P 7.50 12.40 8.60 F0502WR-S-40P 18.50 23.40 19.60
F0502WR-S-19P 8.00 12.90 9.10 F0502WR-S-42P 19.00 23.90 20.10
F0502WR-S-20P 8.50 13.40 9.60 F0502WR-S-45P 19.50 24.40 20.60
F0502WR-S-21P 9.00 13.90 10.10 F0502WR-S-46P 20.50 25.40 21.60
F0502WR-S-22P 9.50 14.40 10.60 F0502WR-S-50P 22.00 26.90 23.10
F0502WR-S-23P 10.00 14.90 11.10 F0502WR-S-54P 22.50 27.40 23.60
F0502WR-S-24P 10.50 15.40 11.60 F0502WR-S-55P 24.50 29.40 25.60
F0502WR-S-25P 11.00 15.90 12.10 F0502WR-S-60P 26.50 31.40 27.60
F0502WR-S-26P 11.50 16.40 12.60 27.00 31.90 28.10
12.00 16.90 13.10 29.50 34.40 30.60
12.50 17.40 13.60

Unit:mm
