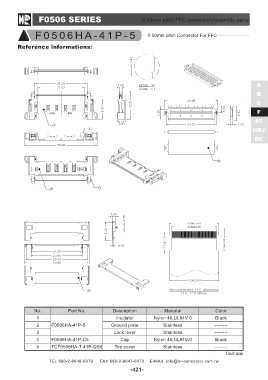

F0506 SERIES 0.50mm pitch FFC connector(Assembly parts)
F0506HA-41P-5 0.50mm pitch Connector For FFC
Reference lnformations:
A
B
C
F
ST
HRJ
DC
No. Part No. Description Material Color
Nylon 46,UL94V-0 Black
1 Insulator --------
Stainless --------
2 F0506HA-41P-5 Ground plate Stainless Black
Nylon 46,UL94V-0 --------
3 Lock lever Stainless
Unit:mm
4 F0506HA-41P-C5 Cap
5 TCF0506HA-T-41P-QS0 Top cover
