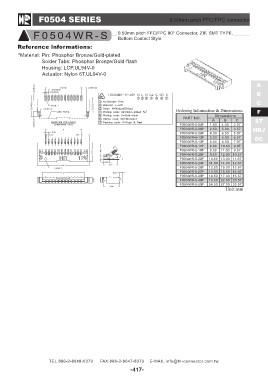

Page 18 - JOINT TECH

F0504 SERIES 0.50mm pitch FFC/FPC connector

FA00580040WH IR - S 0.50mm pitch FFC/FPC 90° Connector, ZIF, SMT TYPE,
Bottom Contact Style

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Solder Tabs: Phosphor Bronze/Gold-flash
Housing: LCP,UL94V-0
Actuator: Nylon 6T,UL94V-0

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
ABC F
ST
F0504WR-S-04P 1.50 4.00 2.57 HRJ
DC
F0504WR-S-06P 2.50 5.00 3.57

F0504WR-S-09P 4.00 6.50 5.07

F0504WR-S-12P 5.50 8.00 6.57

F0504WR-S-13P 6.00 8.50 7.07

F0504WR-S-17P 8.00 10.50 9.07

F0504WR-S-18P 8.50 11.00 9.57

F0504WR-S-20P 9.50 12.00 10.57

F0504WR-S-22P 10.50 13.00 11.57

F0504WR-S-24P 11.50 14.00 12.57

F0504WR-S-26P 12.50 15.00 13.57

F0504WR-S-27P 13.00 15.50 14.07

F0504WR-S-30P 14.50 17.00 15.57

F0504WR-S-40P 19.50 22.00 20.57

F0504WR-S-50P 24.50 27.00 25.57

Unit:mm
