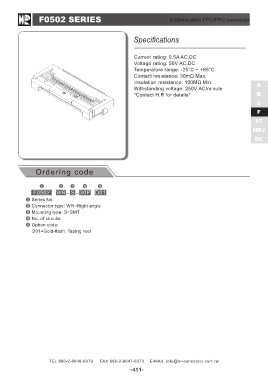

F0502 SERIES 0.50mm pitch FFC/FPC connector

Specifications

Current rating: 0.5A AC,DC A
Voltage rating: 50V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 30mΩ Max. F
Insulation resistance: 100MΩ Min. ST
Withstanding voltage: 250V AC/minute HRJ
*Contact H.R for details* DC

Ordering code

F0502 WR - S - 30P D01

Series No.
Connector type: WR=Right angle
Mounting type: S=SMT
No. of circuits
Option code:
D01=Gold-flash, Taping reel
