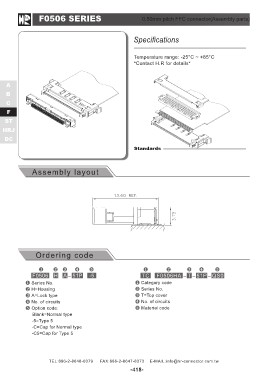

F0506 SERIES 0.50mm pitch FFC connector(Assembly parts)

A Specifications
B
C Temperature range: -25°C ~ +85°C
F *Contact H.R for details*
ST
HRJ Standards
DC

Assembly layout

Ordering code

F0506 H A - 51P -5 TC F0506HA - T - 51P - QS0

Series No. Category code
H=Housing Series No.
A=Lock type T=Top cover
No. of circuits No. of circuits
Option code: Material code
Blank=Normal type
-5=Type 5
-C=Cap for Normal type
-C5=Cap for Type 5

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-418-
