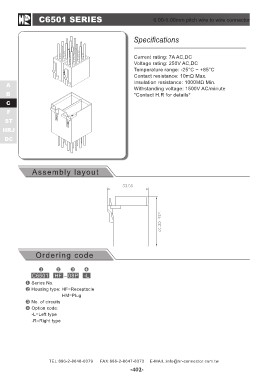

C6501 SERIES 6.00-5.00mm pitch wire to wire connector
A Specifications
B
C Current rating: 7A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1500V AC/minute
Assembly layout *Contact H.R for details*
Ordering code
C6501 HF - 08P -L
Series No.
Housing type: HF=Receptacle
HM=Plug
No. of circuits
Option code:
-L=Left type
-R=Right type
