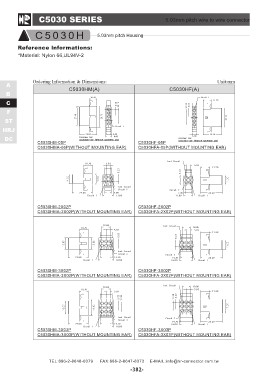

C5030 SERIES 5.03mm pitch wire to wire connector
C5030H 5.03mm pitch Housing
Reference lnformations:
*Material: Nylon 66,UL94V-2
A Ordering Information & Dimensions: Unit:mm
B C5030HM(A)
C C5030HF(A)
F
ST C5030HM-05P C5030HF-05P
HRJ C5030HMA-05P(WITHOUT MOUNTING EAR) C5030HFA-05P(WITHOUT MOUNTING EAR)
DC
C5030HM-2X02P C5030HF-2X02P
C5030HMA-2X02P(WITHOUT MOUNTING EAR) C5030HFA-2X02P(WITHOUT MOUNTING EAR)
C5030HM-3X02P C5030HF-3X02P
C5030HMA-3X02P(WITHOUT MOUNTING EAR) C5030HFA-3X02P(WITHOUT MOUNTING EAR)
C5030HM-3X03P C5030HF-3X03P
C5030HMA-3X03P(WITHOUT MOUNTING EAR) C5030HFA-3X03P(WITHOUT MOUNTING EAR)
