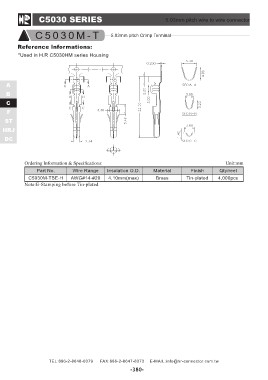

C5030 SERIES                                             5.03mm pitch wire to wire connector

          C 5 0 3 0 M - T 5.03mm pitch Crimp Terminal

     Reference lnformations:
     *Used in H.R C5030HM series Housing

  A
  B
  C
  F
 ST
HRJ
 DC

     Ordering Information & Specifications:                                             Unit:mm
                                                                                    Qty/reel
     Part No.  Wire Range                    Insulation O.D.  Material    Finish    4,000pcs
                                             4.10mm(max)       Brass    Tin-plated
       C5030M-TBE-H AWG#14-#20
     Note:E-Stamping before Tin-plated
