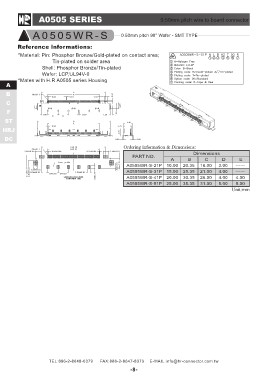

A0505 SERIES                                                    0.50mm pitch wire to board connector

     AA00580050WH IR - S 0.50mm pitch 90° Wafer - SMT TYPE

      Reference lnformations:

       *Material: Pin: Phosphor Bronze/Gold-plated on contact area;
                            Tin-plated on solder area

                     Shell: Phosphor Bronze/Tin-plated
                     Wafer: LCP,UL94V-0
       *Mates with H.R A0505 series Housing
A

B

C

F

 ST
HRJ
 DC

                          Ordering Information & Dimensions:

                          PART NO.                                                  Dimensions       E
                                                                     ABCD                         ------
                                                                                                  ------
                          A0505WR-S-21P 10.00 20.35 16.00 3.00                                    4.00
                                                                                                  5.00
                          A0505WR-S-31P 15.00 25.35 21.00 4.00
                                                                                                Unit:mm
                          A0505WR-S-41P 20.00 30.35 26.00 4.00

                          A0505WR-S-51P 25.00 35.35 31.00 5.00

     TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
