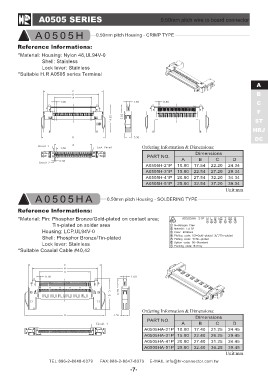

A0505 SERIES 0.50mm pitch wire to board connector

A0505H 0.50mm pitch Housing - CRIMP TYPE

Reference lnformations:

*Material: Housing: Nylon 46,UL94V-0
Shell: Stainless
Lock lever: Stainless

*Suitable H.R A0505 series Terminal

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions
ABCD

A0505H-21P 10.00 17.54 22.20 24.34

A0505H-31P 15.00 22.54 27.20 29.34

A0505H-41P 20.00 27.54 32.20 34.34

A0505H-51P 25.00 32.54 37.20 39.34

Unit:mm

A0505HA 0.50mm pitch Housing - SOLDERING TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated on contact area;
Tin-plated on solder area

Housing: LCP,UL94V-0
Shell: Phosphor Bronze/Tin-plated
Lock lever: Stainless
*Suitable Coaxial Cable #40,42

Ordering Information & Dimensions:

PART NO. Dimensions
ABCD

A0505HA-21P 10.00 17.40 21.25 24.45

A0505HA-31P 15.00 22.40 26.25 29.45

A0505HA-41P 20.00 27.40 31.25 34.45

A0505HA-51P 25.00 32.40 36.25 39.45

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-7-
