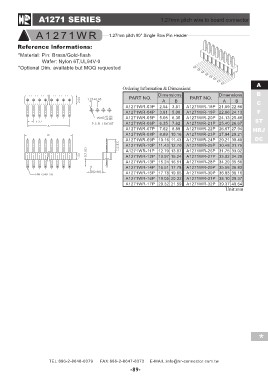

A1271 SERIES 1.27mm pitch wire to board connector

A1271WR 1.27mm pitch 90° Single Row Pin Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Optional Dim. available but MOQ requested

Ordering Information & Dimensions: A
B
PART NO. Dimensions PART NO. Dimensions C
AB AB F
ST
A1271WR-03P 2.54 3.81 A1271WR-18P 21.59 22.86 HRJ
DC
A1271WR-04P 3.81 5.08 A1271WR-19P 22.86 24.13

A1271WR-05P 5.08 6.35 A1271WR-20P 24.13 25.40

A1271WR-06P 6.35 7.62 A1271WR-21P 25.40 26.67

A1271WR-07P 7.62 8.89 A1271WR-22P 26.67 27.94

A1271WR-08P 8.89 10.16 A1271WR-23P 27.94 29.21

A1271WR-09P 10.16 11.43 A1271WR-24P 29.21 30.48

A1271WR-10P 11.43 12.70 A1271WR-25P 30.48 31.75

A1271WR-11P 12.70 13.97 A1271WR-26P 31.75 33.02

A1271WR-12P 13.97 15.24 A1271WR-27P 33.02 34.29

A1271WR-13P 15.24 16.51 A1271WR-28P 34.29 35.56

A1271WR-14P 16.51 17.78 A1271WR-29P 35.56 36.83

A1271WR-15P 17.78 19.05 A1271WR-30P 36.83 38.10

A1271WR-16P 19.05 20.32 A1271WR-31P 38.10 39.37

A1271WR-17P 20.32 21.59 A1271WR-32P 39.37 40.64

Unit:mm

*
