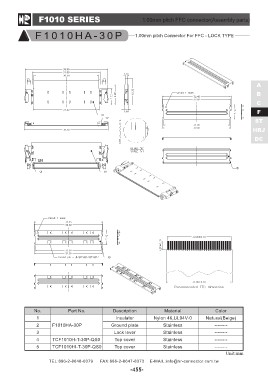

F1010 SERIES 1.00mm pitch FFC connector(Assembly parts)
F1010HA-30P 1.00mm pitch Connector For FFC - LOCK TYPE
A
B
C
F
ST
HRJ
DC
No. Part No. Description Material Color
Nylon 46,UL94V-0 Natural(Beige)
1 Insulator
Stainless --------
2 F1010HA-30P Ground plate Stainless --------
Stainless --------
3 Lock lever Stainless --------
4 TCF1010H-T-30P-QS0 Top cover Unit:mm
5 TCF1010HI-T-30P-QS0 Top cover
