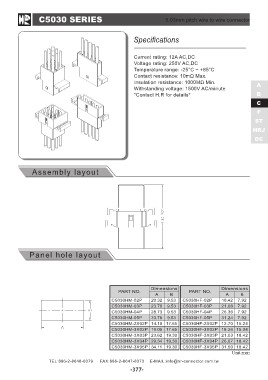

C5030 SERIES 5.03mm pitch wire to wire connector
Assembly layout
Speciﬁcations

Current rating: 12A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1500V AC/minute HRJ
*Contact H.R for details* DC

Panel hole layout

PART NO. Dimensions PART NO. Dimensions
AB AB
C5030HF-02P
C5030HM-02P 20.32 9.53 C5030HF-03P 18.42 7.92
C5030HF-04P 21.08 7.92
C5030HM-03P 23.70 9.53 C5030HF-05P 26.36 7.92
C5030HF-2X02P 31.24 7.92
C5030HM-04P 28.73 9.53 C5030HF-3X02P 12.70 15.24
C5030HF-3X03P 18.24 15.24
C5030HM-05P 33.78 9.53 C5030HF-3X04P 21.03 18.42
C5030HF-3X05P 26.67 18.42
C5030HM-2X02P 14.10 17.65 31.50 18.42

C5030HM-3X02P 19.05 17.65 Unit:mm

C5030HM-3X03P 23.62 19.30

C5030HM-3X04P 29.34 19.30

C5030HM-3X05P 34.11 19.30
