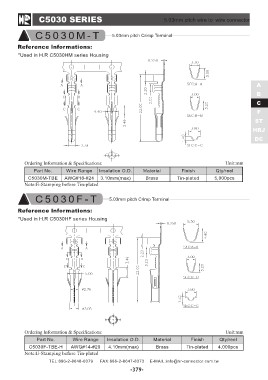

C5030 SERIES 5.03mm pitch wire to wire connector

C5030M-T 5.03mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C5030HM series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 5,000pcs
Brass Tin-plated
C5030M-TBE AWG#18-#24 3.10mm(max)
Note:E-Stamping before Tin-plated

C5030F-T 5.03mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R C5030HF series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 4,000pcs
4.10mm(max) Brass Tin-plated
C5030F-TBE-H AWG#14-#20
Note:E-Stamping before Tin-plated
