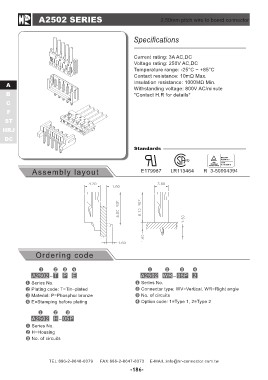

A2502 SERIES 2.50mm pitch wire to board connector

A Specifications
B
C Current rating: 3A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 10mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 800V AC/minute
Assembly layout *Contact H.R for details*

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code A2502 WR - 05P 2

A2502 - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. No. of circuits
Plating code: T=Tin–plated Option code: 1=Type 1, 2=Type 2
Material: P=Phosphor bronze
E=Stamping before plating

A2502 H - 05P

Series No.
H=Housing
No. of circuits
