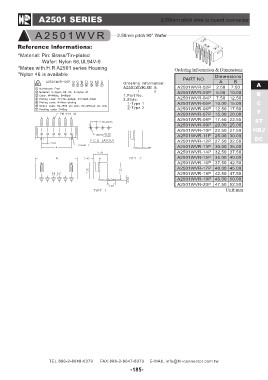

A2501 SERIES 2.50mm pitch wire to board connector

A2501WVR 2.50mm pitch 90° Wafer

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
PART NO. Dimensions
Wafer: Nylon 66,UL94V-0 AB
*Mates with H.R A2501 series Housing A2501WVR-02P
*Nylon 46 is available A2501WVR-03P 2.50 7.50
A2501WVR-04P 5.00 10.00
Ordering Information: A2501WVR-05P 7.50 12.50 A
A2501WVR-XP ＊ A2501WVR-06P 10.00 15.00 B
A2501WVR-07P 12.50 17.50 C
12 A2501WVR-08P 15.00 20.00 F
A2501WVR-09P 17.50 22.50 ST
1.Part No. A2501WVR-10P 20.00 25.00 HRJ
2.Style: A2501WVR-11P 22.50 27.50 DC
A2501WVR-12P 25.00 30.00
1-Type 1 A2501WVR-13P 27.50 32.50
2-Type 2 A2501WVR-14P 30.00 35.00
A2501WVR-15P 32.50 37.50
A2501WVR-16P 35.00 40.00
A2501WVR-17P 37.50 42.50
A2501WVR-18P 40.00 45.00
A2501WVR-19P 42.50 47.50
A2501WVR-20P 45.00 50.00
47.50 52.50

Unit:mm
