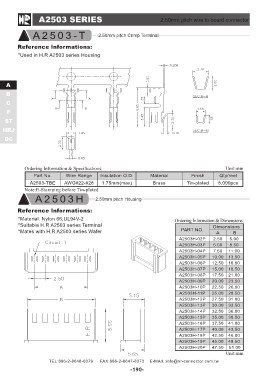

A2503 SERIES 2.50mm pitch wire to board connector

A2503-T 2.50mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2503 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 8,000pcs
Brass Tin-plated
A2503-TBE AWG#22-#28 1.75mm(max)

Note:E-Stamping before Tin-plated

A 2 5 0 3 H 2.50mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66,UL94V-2 PART NO. Dimensions
*Suitable H.R A2503 series Terminal AB
*Mates with H.R A2503 series Wafer

A2503H-02P 2.50 6.00

A2503H-03P 5.00 8.50

A2503H-04P 7.50 11.00

A2503H-05P 10.00 13.50

A2503H-06P 12.50 16.00

A2503H-07P 15.00 18.50

A2503H-08P 17.50 21.00

A2503H-09P 20.00 23.50

A2503H-10P 22.50 26.00

A2503H-11P 25.00 28.50

A2503H-12P 27.50 31.00

A2503H-13P 30.00 33.50

A2503H-14P 32.50 36.00

A2503H-15P 35.00 38.50

A2503H-16P 37.50 41.00

A2503H-17P 40.00 43.50

A2503H-18P 42.50 46.00

A2503H-19P 45.00 48.50

A2503H-20P 47.50 51.00

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
