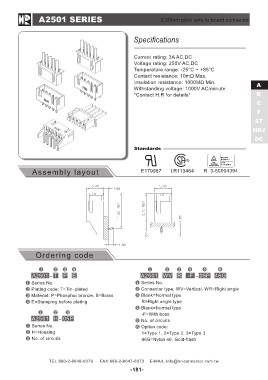

A2501 SERIES 2.50mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 3A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1000V AC/minute HRJ
*Contact H.R for details* DC

Standards

® TÜV BAUART
Rheinland GEPRÜFT
LR113464 Product Aafety
TYPE
APPROVED

E179987 R 3-50004394

Ordering code A2501 WV R -F - 05P 46G

A2501 - T P E Series No.
Connector type: WV=Vertical, WR=Right angle
Series No. Blank=Normal type
Plating code: T=Tin–plated R=Right angle type
Material: P=Phosphor bronze, B=Brass Blank=Normal type
E=Stamping before plating -F=With boss
No. of circuits
A2501 H - 05P Option code:
1=Type 1, 2=Type 2, 3=Type 3
Series No. 46G=Nylon 46, Gold-flash
H=Housing
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-181-
