P. 198

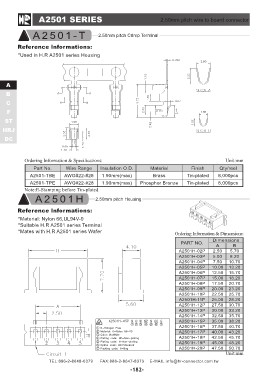

A2501 SERIES 2.50mm pitch wire to board connector
A2501-T 2.50mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A2501 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 8,000pcs
Tin-plated 8,000pcs
A2501-TBE AWG#22-#28 1.90mm(max) Brass Tin-plated
A2501-TPE AWG#22-#28 1.90mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated
A 2 5 0 1 H 2.50mm pitch Housing
Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66,UL94V-0
*Suitable H.R A2501 series Terminal
*Mates with H.R A2501 series Wafer
PART NO. Dimensions
AB
A2501H-02P
A2501H-03P 2.50 5.70
A2501H-04P 5.00 8.20
A2501H-05P 7.50 10.70
A2501H-06P 10.00 13.20
A2501H-07P 12.50 15.70
A2501H-08P 15.00 18.20
A2501H-09P 17.50 20.70
A2501H-10P 20.00 23.20
A2501H-11P 22.50 25.70
A2501H-12P 25.00 28.20
A2501H-13P 27.50 30.70
A2501H-14P 30.00 33.20
A2501H-15P 32.50 35.70
A2501H-16P 35.00 38.20
A2501H-17P 37.50 40.70
A2501H-18P 40.00 43.20
A2501H-19P 42.50 45.70
A2501H-20P 45.00 48.20
47.50 50.70
Unit:mm
